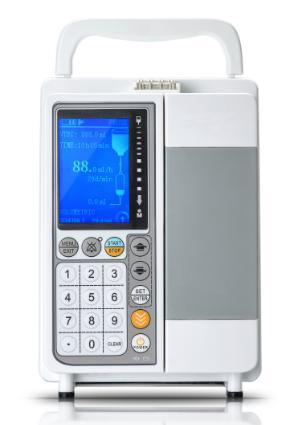

| Brand Name: | JYK |
| Model Number: | HF-710 |
| MOQ: | 1pc |
| Price: | 200USD-260USD |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 1000pcs/month |
| Infusion Mode | Volume Mode, Time Mode, Drug Mode, Night Mode, Bolus Mode |
|---|---|
| Rate Unit | ml/h, volume/time, d/min |
| IV Sets | Standard single use IV sets (10,15,20,50,60d/mL, diameter 3.4-4.5mm) |
| Flow Rate | 1.0ml/h-1200ml/h, 1.0d/min-400d/min |
| Increment | 1.0-100ml/h in 0.1ml/h step; 100-1200ml/h in 1ml/h step |
| Deviation | Flow Rate: ≤5% (after calibration) |
| VTBI | 0.1-9999.9 ml |
| Total Volume | 0.0-9999.9 ml |
| Time | 1min to >99h59min |
| Purge Rate | 600ml/h with purge volume display |
| KVO | 0.1ml/h-5ml/h, adjustable |
| Occlusion Pressure | 40KPa-140KPa, 0-9 levels adjustable with dynamic pressure display |
| Air Bubble Detection | Single bubble volume: 50-300μl, 0-9 levels adjustable |
| Keypad | Numeric keypad for user-friendly operation |
|---|---|
| Screen | 3.2-inch high brightness LCD display |
| Bolus Function | Available with adjustable flow rate |
| Night Mode | Screen dims automatically after 5 minutes standby |
| Power Supply | AC Power: 100V-240V, 50Hz/60Hz, ≤25VA |
|---|---|
| Battery | Rechargeable Lithium battery, DC11.1V, 3000mAh |
| Operating Time | ≥10 hours @25ml/h with battery level display |
| Operation Conditions | Temperature: +5ºC to +40ºC, Humidity: 20%-90%, Air pressure: 70-106KPa |
|---|---|
| Transport & Storage | Temperature: -20ºC to +55ºC, Humidity: 10%-95%, Air pressure: 50-106KPa |
| Classification | Type CF, Class II, IPX3, ISO13485, CE, IEC60601 |
|---|---|
| Self-Testing | Automatic self-testing before startup and during infusion |
| Alarm Messages | Air bubble, downstream occlusion, door open, infusion finish, standby time expired, battery low, battery empty, battery disengaged, AC Power disengaged, motor error, pump error, pressure sensor error, parameter error, system abnormal |
| Dimensions | 150mm × 140mm × 210mm (W×H×D) |
|---|---|
| Weight | 1.7kg |
| Warranty | Two years (battery one year) |
