| Brand Name: | JYK |
| Model Number: | HF-610 |
| MOQ: | 1pc |
| Price: | 200USD-260USD |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 1000pcs/month |

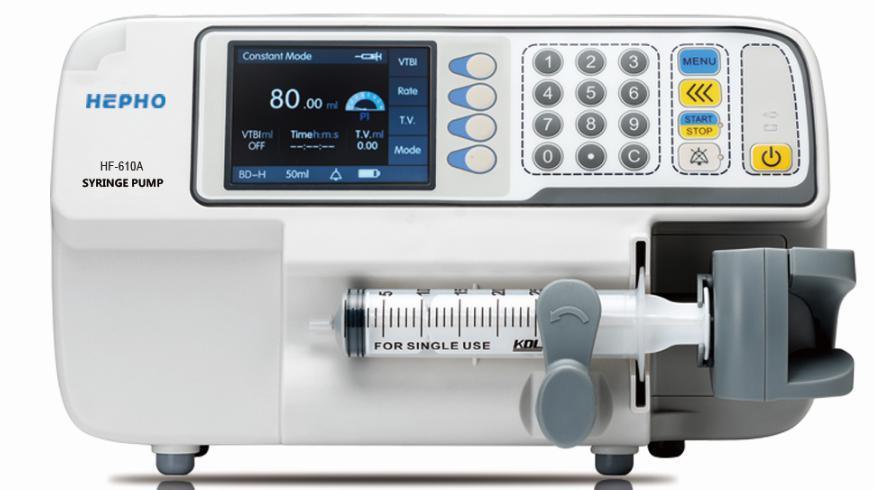

Single channel infusion syringe pump designed for medical injection applications. This automatic portable infusion syringe pump features advanced medical technology with reliable single-channel operation for hospital and surgical environments.
| Specification | Details |
|---|---|
| Infusion Mode | Micro and continuous injection |
| Compatible Syringes | 5mL, 10mL, 20mL, 30mL, 50/60mL syringes Self-defined for customer's brand |
| Rate Units | mL/h, mg/h, µg/h, µg/kg/min, mg/kg/min, µg/kg/h, mg/kg/h |
| Flow Rate Range | 5ml syringe: 0.01-60mL/h 10mL syringe: 0.01-300 mL/h 20mL syringe: 0.01-400 mL/h 30mL syringe: 0.01-600 mL/h 50mL syringe: 0.01-1200 mL/h |
| Flow Rate Increment | 0.01 mL/h steps (0.01-99.99 mL/h); 1 mL/h steps (100-999 mL/h) |
| Volume Limit | 0.1-9999.9 mL (empty mode available) |
| Flow Rate Deviation | ≤ ±2% |
| Occlusion Pressure | Pressure detection with 10 sensitivity settings (10-140KPa) |
| Display | 3.5" TFT color LCD |
| Power Source | AC: 100V-240V, 50Hz/60Hz, ≤25VA |
| Battery | Rechargeable Lithium battery: DC11.1V, 3000mAh, ≥7 hours at 5mL/h |
| Classification | Class II, CF, IPX4 |
| Dimensions & Weight | 340mm x 200mm x 158mm; 2.1kg |
Two years comprehensive warranty
