Adjustable Electric Medical Operation Table

Brand Name:	JYK
Model Number:	JYK-B704
MOQ:	1
Price:	3800USD-4500USD
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	300PCS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO13485

Material:

Stainless Steel, PU

Leg Support:

Backrest:

0-45degree

Height Adjustment (up/down):

750-1000mm

Leg Plate (up/down):

0/90 Degree

Packaging Details:

carton

Supply Ability:

300PCS/MONTH

Highlight:

adjustable electric medical table

medical operation table with warranty

electric operation table for surgery

Product Description

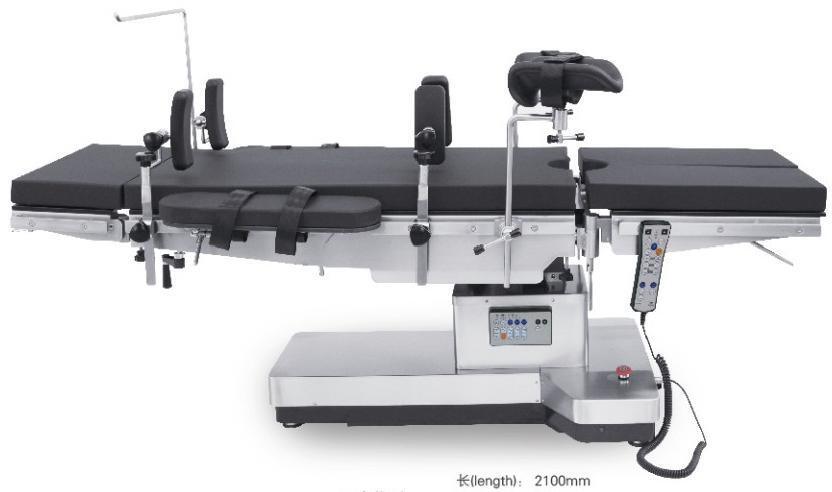

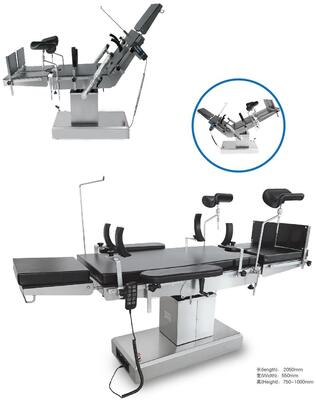

Adjustable Electric Medical Operation Table

Product Overview

Electric operation table for surgery JYK-B704. This product is used for the surgeries of head,neck,chest abdomen,perineum,limbs,obstetrics,ophthalmology,otolaryngology and orthopedics,etc.The controlled by electric hydraulic system easy and flexible.The floor is made of syntheticboard with good-quality and can be used with C-ARM.

Key Features

The tabletop is made up of high-strength and transparent materials with a ultra-long vertical translation distance, which can facilitate the medical examination by cooperation with C-shaped arm machine
All posture adjustment, including the table height adjustment, forward and backward, and tabletop vertical translation are all controlled by keys operation and fueled by the electro-hydraulic cylinder.
The hand-holding manipulator adopts 24V direct current voltage to make sure its simple and safe operation, and it will automatically lock if there is no any operation for 30 seconds.
the oil pump, hand -holding manipulator, and oil cylinder are all brand products to ensure its low noise, stable performance, and simple operation.
With the lock nut loosened , the leg board can be extended out by manual rotation and the gas spring structure enables it to be folded at any angle with simple operation. The leg board is detachable, which is especially convenient for urological operations.
This product is equipped with the interchange function between the headboard and the leg board.
The equipment is designed with the one-key horizontal resetting and one-key buckling (V) and reverse buckling (A) functions.
All motions electrically powered for flexibility, safety, and reliability

Technical Specifications

Length/Width	2050mm/550mm
Height Adjustment (Up/Down)	750mm/1000mm
Trendelenburg/Reverse Trendelenburg	25°/25°
Lateral Tilt	20°/20°
Longitudinal Movement	400mm
Head Rest (Up/Down)	45°/90°
Back Section	0°/45°
Leg Plate (Up/Down)	0°/90°
Kidney Bridge Elevation	100mm, swiveling of leg plate: 90°

Standard Accessories

1 screen
2 shoulder rests
2 arm supports
2 waist supports
2 knee crutches
2 leg boards

Packaging Information

Package: 1 piece per box
Measurements: 1220×740×1040mm
Gross/Net Weight: 280kg/225kg
