Hydraulic Multi-Function Emergency Stretcher Trolley Cardiac Board Defibrillator Platform 5th Wheel 200kg

Hydraulic Multi-Function Emergency Stretcher Trolley Cardiac Board Defibrillator Platform 5th Wheel 200kg

Brand Name: JYK
Model Number: JYK-B333CB
MOQ: 1 Piece
Price: USD 2000-2600 / Piece
Payment Terms: T/T, L/C, Western Union, D/A, D/P
Supply Ability: 350 Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO 13485 CE
Material:
304 Stainless Steel Satin Finish
Cardiac Board:
Slide-out HDPE 650×450mm Radiolucent
Defib Platform:
Stainless Steel Adjustable Clamp
CPR:
Quick-flatten Backrest Lever
Equipment Rails:
2pcs Aluminum Quick-attach
5th Wheel:
Directional Steering Castor
Packaging Details:
JYK branded carton with cardiac board protection, export-grade outer carton
Supply Ability:
350 Pieces per Month
Highlight:

Hydraulic emergency stretcher trolley

,

Multi-function patient trolley with defibrillator platform

,

200kg capacity cardiac board stretcher

Product Description

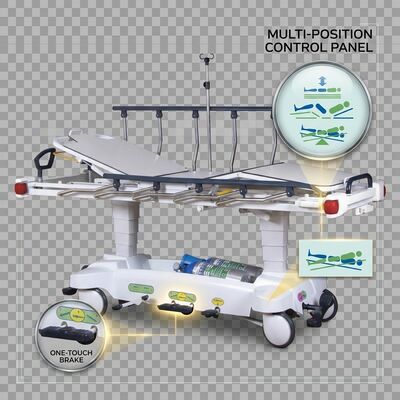

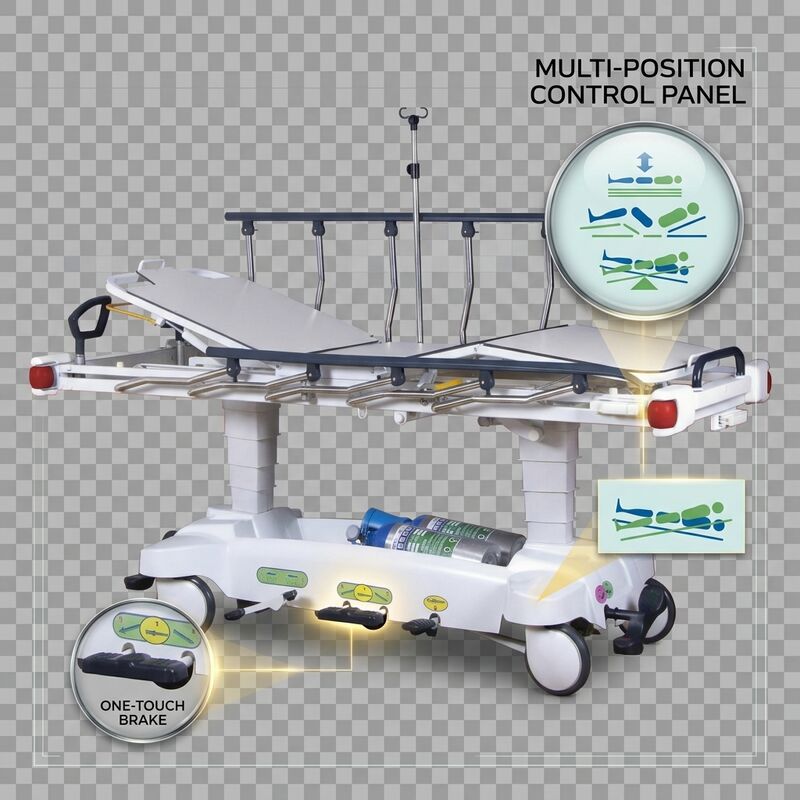

Hydraulic Multi-Function Emergency Stretcher Trolley with Cardiac Board 200kg
Comprehensive emergency response stretcher trolley equipped for code blue and critical care transport. Model JYK-B333CB incorporates a slide-out cardiac compression board, dedicated defibrillator mounting platform, and 5th wheel precision steering for rapid emergency department response.
Product Overview
  • Multi-function emergency stretcher with cardiac life support features
  • Model number: JYK-B333CB
  • Dimensions: 2100*750*550/880mm
  • Maximum loading capacity: 200kg
Construction Materials
  • Frame: 304 stainless steel with satin polished finish
  • Cardiac board: High-density polyethylene with radiolucent property
  • Defibrillator platform: Stainless steel with adjustable clamp system
  • Equipment rail: Aluminum alloy with quick-attach accessory mounts
Key Features
  • Slide-out cardiac compression board stored under mattress for immediate CPR
  • Dedicated defibrillator mounting platform with secure quick-release clamp
  • 5th wheel directional steering for one-person emergency corridor navigation
  • Dual side equipment rails for monitor, infusion pump, and suction attachment
  • Oxygen cylinder bracket with quick-release strap at foot end
  • Hydraulic height adjustment with emergency rapid-lower function
  • CPR quick-flatten backrest lever for immediate supine positioning
  • Color-coded emergency access points marked with reflective indicators
Technical Specifications
FeatureSpecification
Cardiac BoardSlide-out HDPE, 650*450mm, radiolucent
Defib PlatformStainless steel, adjustable width clamp
Height Range550-880mm hydraulic with rapid lower
Backrest0-80° with CPR quick-flatten
Equipment Rail2pcs side-mounted aluminum alloy
O2 BracketStainless steel foot-end QR strap
Castor System4pcs 200mm central lock + 5th steering
Side Rails1 pair collapsible with equipment hooks
Applications
Purpose-configured for emergency departments, cardiac care units, and rapid response teams handling code blue events. The integrated cardiac board and defibrillator platform ensure life support equipment is immediately available at the point of care during critical patient transport.
