Stainless Steel Hydraulic Patient Trolley Stretcher X-Ray Translucent Platform 250kg Load Capacity

Stainless Steel Hydraulic Patient Trolley Stretcher X-Ray Translucent Platform 250kg Load Capacity

Brand Name: JYK
Model Number: JYK-B308F
MOQ: 1 Piece
Price: USD 1800-2200 / Piece
Payment Terms: T/T, L/C, Western Union, D/A, D/P
Supply Ability: 500 Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO 13485 CE
Material:
304 Stainless Steel, PU Leather
Hydraulic Pump:
2pcs Dual Hydraulic System
X-ray Transparent:
Full-length Platform
Side Rail:
Stainless Steel Collapsible
Load Capacity:
250kg
Castors:
4pcs 200mm Central Lock With 5th Direction Wheel
Packaging Details:
JYK branded carton with foam protection, export-grade outer carton
Supply Ability:
500 Pieces per Month
Highlight:

Stainless Steel Patient Trolley Stretcher

,

Hydraulic X-Ray Translucent Stretcher

,

250kg Capacity Patient Trolley

Product Description

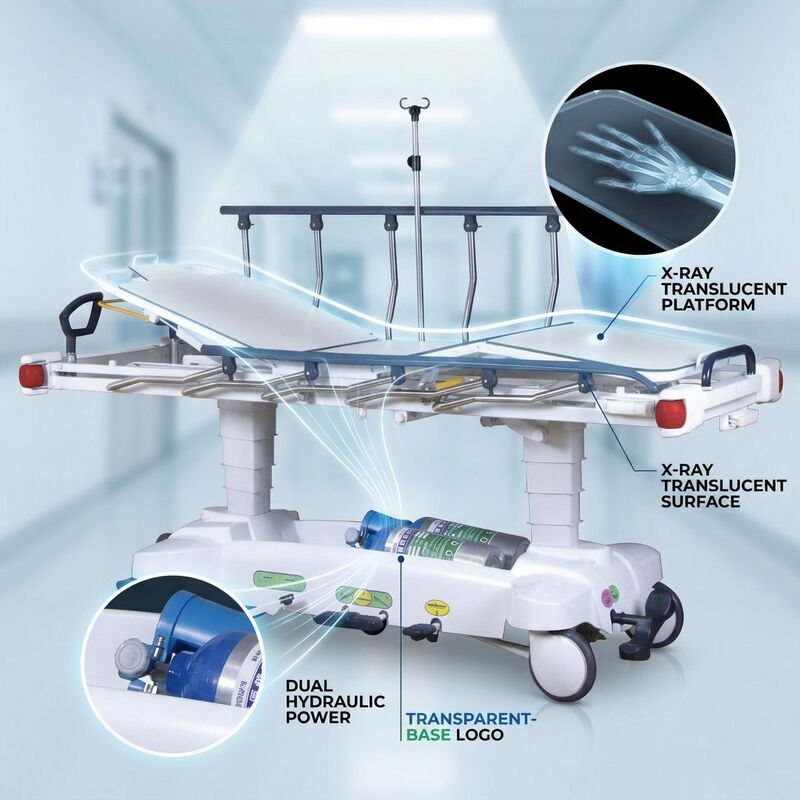

Stainless Steel Hydraulic Patient Trolley Stretcher with X-Ray Translucent Platform 250kg
Premium stainless steel hydraulic rise-and-fall stretcher cart engineered for intensive care and emergency department patient transport. Model JYK-B308F features a full-length X-ray translucent platform and 250kg maximum loading capacity.
Product Overview
  • Hydraulic rise-and-fall stretcher cart with X-ray translucent bed board
  • Model number: JYK-B308F
  • Overall size: 2150*810*590/910mm
  • Maximum loading capacity: 250kg
Construction Materials
  • Bed frame: Premium 304 stainless steel with polished finish
  • Back board: Full-length X-ray translucent panel
  • Bottom cover: Stainless steel with sealed edges
  • Side rails: Collapsible stainless steel with locking mechanism
Key Features
  • Imported dual hydraulic pump system for smooth height adjustment
  • International advanced centrally controlled brake system with fifth direction wheel
  • 200mm dustproof castors with premium bearings for steady movement
  • Side treadle controls for raise, lower, and tilting operations
  • Full-length X-ray translucent platform enables imaging without patient transfer
  • Independent backrest and leg rest adjustment via gas spring mechanism
  • Includes stainless steel IV pole and drainage hook set
  • Easy-to-clean surface with antibacterial properties
Technical Specifications
FeatureSpecification
Backrest Adjustment0-75° (±5°) controlled by gas spring
Height Adjustment590-910mm controlled by dual hydraulic pumps
Leg Rest Adjustment0-35° (±5°)
X-Ray CompatibilityFull-length X-ray translucent back board
Side Rails1 pair stainless steel, collapsible
Trendelenburg & Reverse-15° to +15°
Castors4pcs 200mm central lock with 5th direction castor
IV Pole2 pieces stainless steel, adjustable
MattressHigh-density foam with PU leather cover, waterproof
Applications
Specifically designed for emergency departments, ICU settings, radiology patient transfer, and critical care transport. The X-ray translucent platform eliminates the need for patient repositioning during imaging procedures.
