15'' Invasive ICU TFT Medical Monitor For Hospital Patient Multi Parameter

Brand Name: JYK
Model Number: SPN9000M
MOQ: 1pc
Price: 588USD-685USD
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500pcs/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO13485,CE
Display:
15'' Color TFT
Parameters:
ECG, NIBP,SpO2,RESP, TEMP,HR/PR
Extra Function:
Measure Artery, Invasive
Packaging Details:
carton
Supply Ability:
500pcs/month
Highlight:

ICU Medical Monitor

,

Multi Parameter Medical Monitor

,

TFT hospital patient monitor

Product Description
15'' Invasive ICU TFT Medical Monitor For Hospital Patient Multi Parameter
Advanced medical monitor designed for invasive monitoring in hospital ICU settings. This multi-parameter patient monitor provides comprehensive vital sign tracking for critical care patients, featuring specialized invasive measurement capabilities for arterial monitoring and intensive care applications.
Key Features
  • 15" color TFT display with high resolution: 1024×768 dpi
  • Separated parameter boards: ECG, NIBP, SpO2
  • Full touch-screen operation with navigation knob
  • Real-time S-T segment analysis and ARR analysis
  • SpO2 Pitch Tone Variation and Drug Dose Calculation
  • Parameter waveform and character color selection
  • Multiple display modes including Large Font and Trend Coexist
  • Energy-saving standby mode with suspend monitoring
  • 7-lead ECG waveforms display in phase
  • Built-in rechargeable lithium battery with power checking
  • Resistance to defibrillator and HF knife interference
  • SINNOR F-6 SpO2 technology with NELLCOR accuracy
  • Networking capacity with TCP/IP platform for future upgrades
  • Time delay switch-off function for data retention
  • Complete mounting solutions for transport and in-patient monitoring
Display Screen 15" Color TFT
Standard Parameters ECG, NIBP, SpO2, RESP, TEMP, HR/PR
Extra Function Invasive Monitoring
Standard Parameters
5-lead ECG, SpO2 (F-5), NIBP, TEMP, RESP, PR, HR
Optional Parameters
Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP, 4-TEMP, 2-SpO2, Nellcor/Masimo SpO2, BIS, Phaisein/Respironics Multi-gas, ICG/CO, FHR, FM, TOCO
Performance Specifications
Display
15" color TFT with rolling and refreshing waveform display
Resolution: 1024×768
Multiple display modes: Large-font, Trend coexist, OxyCRG dynamic view, Bed-to-bed view
9 waveforms (7 ECG, 1 SPO2 and 1 RESP)
Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
Power & Storage
Battery: Rechargeable lead acid cell, 12v/4AH
Charging: Max 24 hours, 4 hours continuous operation
Trend storage: 5s/piece (8 hours), 1min/piece (168 hours), 5min/piece (1000 hours)
NIBP: 1000 groups storage
Alarm: 200 groups storage
Full disclosure waveforms: 3600S
SD card external storage
Alarm & Networking
User-adjustable High, Medium and Low limits (3-level)
Audible and visual alarm indicators
Connected to central monitoring system
TCP/IP networking platform
Recorder
Built-in thermal array recorder
Plethysmogram caveform: 2 channels
Record modes: manual, on alarm, time-defined
Recording width: 50mm
Printing speed: 50mm/s
Recording types: Frozen waveform, NIBP recall, Trend table, Alarm, Fixed-time
Detailed Parameter Specifications
ECG
Lead mode: 5-lead (R,L,F,N,C)
Lead selection: I,II,III,avR,avL,avF,V
Waveform: 3 and 7 channel selectable
Gain selection: 0.5mm/mv, 1mm/mv, 2mm/mv
Heart rate range: Adult: 15~300bpm; Neonate/pediatric: 15~350bpm
Accuracy: ±1bpm or ±1% (whichever is greater)
Arrhythmia analysis: Yes
S-T segment detection: -2.0mV ~ +2.0mV range
SpO2
Measurement range: 0~100%
Accuracy: ±2% (70-100%)
Pulse Rate range: 20~300bpm
Error: ±1bpm or ±2% (whichever is greater)
NIBP
Method: Digital Automatic oscillometric
Operation modes: Manual/Automatic/Continuous
Auto measurement time: Adjustable (1~480min)
Measurement types: Systolic, Diastolic, Mean
Over-pressure protection: Double safety protection
Respiration
Method: Thoracic impedance
Measurement range: Adult: 7~120rpm; Neonate/Pediatric: 7~150rpm
Apnea alarm: Yes (10~40s)
Accuracy: ±2rpm
Temperature
Compatible probe: YSI or CYF
Measurement range: 5~50ºC
Accuracy: ±0.1ºC
Average measuring time: <10s
Physical Specifications
Safety & Dimensions
Safety level: Class I, type CF
Dimensions: 28×42×48cm
Weight: <6.5kg
Operation Environment
Temperature: Working 0~+40ºC; Storage -20~+60ºC
Humidity: Working ≤85%; Storage ≤93%
Power: AC 100-240V, 50/60Hz
Patient range: Neonate, pediatric, and adult patients
Standard Accessories
  • 5 lead ECG cable
  • 1 SpO2 probe
  • 1 NIBP probe
  • 1 temperature probe
  • 1 ground connecting liner
  • Chest electrode (10pcs/set)

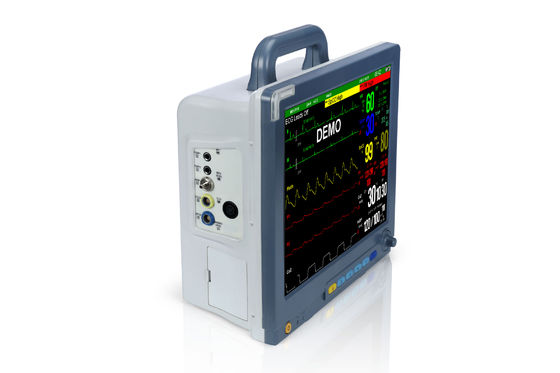

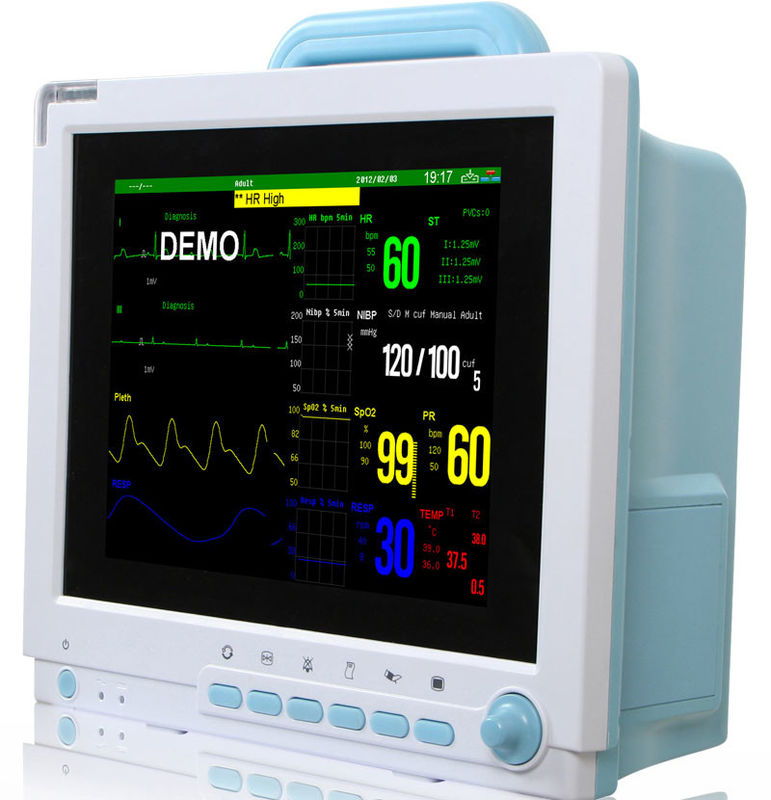

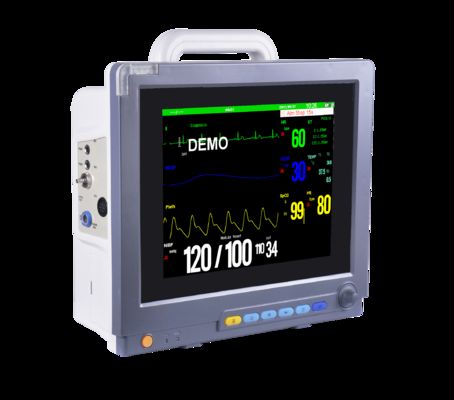

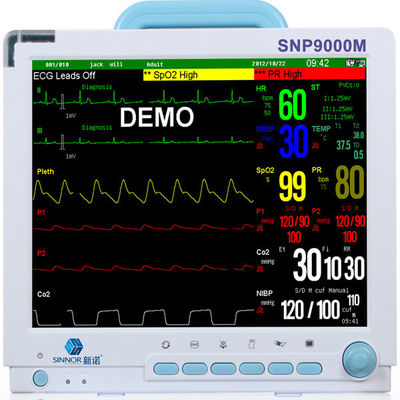

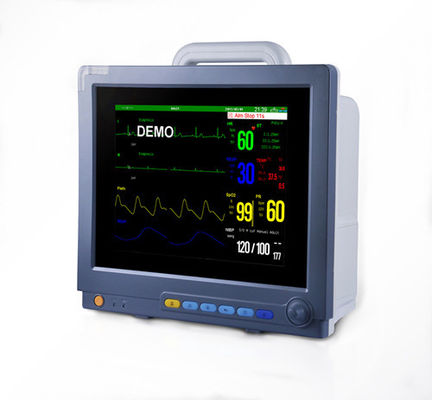

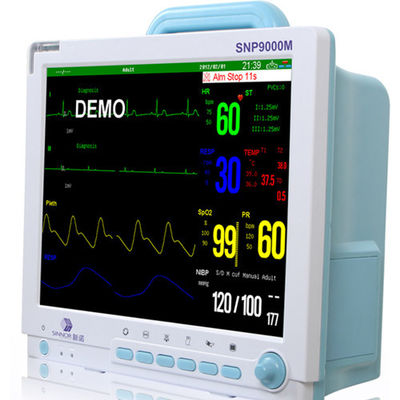

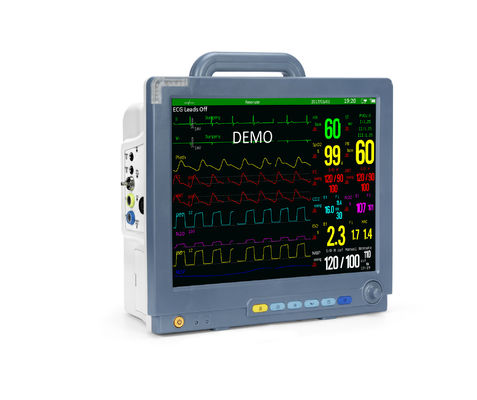

15'' Invasive ICU TFT Medical Monitor For Hospital Patient Multi Parameter 0 15'' Invasive ICU TFT Medical Monitor For Hospital Patient Multi Parameter 1 15'' Invasive ICU TFT Medical Monitor For Hospital Patient Multi Parameter 2
